ORBEA250S14102DF-

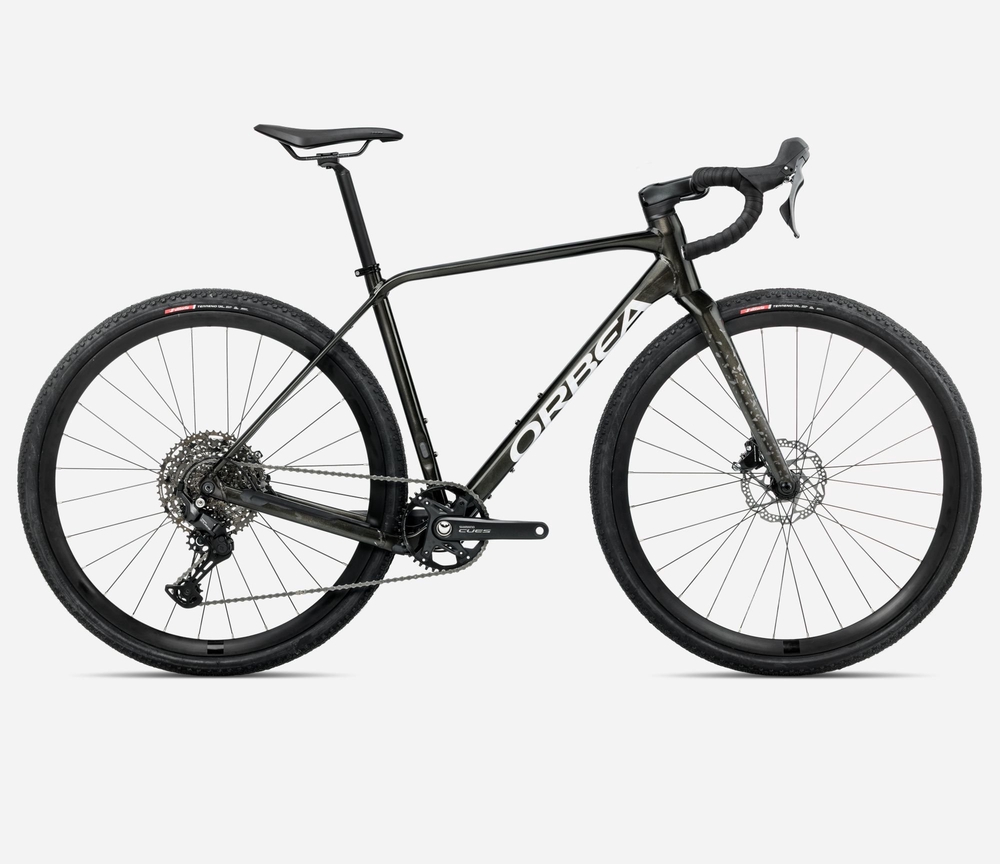

ORBEA TERRA H45 1X ARTICHOKE- LILAC

2099,00 €

Buy now, pay later
Read more
Pay €144.97/month for 12 months (0% rate).
Start-up fee: 0,00 €
Processing fee: 0,00 €
Total of €1 734,11 over 12 months.
Quick delivery straight to your door for just 34,90 €
The TERRA H45 1X frame is made from hydroformed triple butted aluminium for durability. It supports tire sizes from 700c x 45 to 650b x 50 for varied riding setups. Shimano Cues components provide an 11-speed drivetrain with a wide range cassette (11-50 teeth). Shimano RS405 hydraulic disc brakes ensure reliable stopping power. The frame also includes an internal LOCKR storage system for tools and tubes. The carbon fork reduces weight where it matters most.
Versatile tire clearance for 700c and 650b sizes.

Key Features

  • • Versatile tire sizing: supports 700c or 650b wheels.
  • • Wide drivetrain compatibility without reducing tire clearance.
  • • Internal LOCKR storage for tools and tubes.
Orbea TERRA H45 1X offers good tire options, wide drivetrain compatibility, and LOCKR storage.
The TERRA H45 1X frame is made from hydroformed triple butted aluminium for durability. It supports tire sizes from 700c x 45 to 650b x 50 for varied riding setups. Shimano Cues components provide an 11-speed drivetrain with a wide range cassette (11-50 teeth). Shimano RS405 hydraulic disc brakes ensure reliable stopping power. The frame also includes an internal LOCKR storage system for tools and tubes. The carbon fork reduces weight where it matters most.
Tire clearance

Tire clearance

Can be equipped with 700c x 45 or 650b x 50 tires.

Single drivetrain compatibility

Single drivetrain compatibility

Frame allows a range of drivetrain options without compromising tire clearance.

Internal storage - LOCKR

Internal storage - LOCKR

Storage space inside downtube for tools, tube, or pump.

Frame

Material Hydroformed triple butted aluminium
Manufacturer Orbea Terra Hydro disc
Headset HS 1.5", PF
Steerer tube FSA 1-1/2" integrated aluminium cup
Hub size 12mm x 142mm rear, 12mm x 100mm front, Thru Axle
Internal cable routing DT internal
Seatpost SP 0.2 Carbon, 27.2mm, setback 20

Fork

Material Orbea Terra ICR, full carbon
Steerer size 1-1/8" - 1.5" tapered
Attachment Thru axle 12x100mm, M12x2 P1

Drivetrain

Crankset Shimano Cues U6040 40t
Shifters Shimano U6030
Cassette Shimano CS-LG400 11-50t 11-speed
Rear derailleur Shimano Cues U6000 GS Shadow
Chain Shimano LG500

Cockpit

Handlebar OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
Stem OC Road Performance RP23, -5º

Brakes

Type Shimano RS405 hydraulic disc

Wheels

Rims Alloy, tubeless, 700c, 21c wide
Tires Vittoria Terreno T30 fine loose Gravel 700x40c
Wheel axle size Orbea Thru Axle 12x100mm front, 12x142mm rear

Saddle

Brand and model Fizik Terra Argo X7 aluminium rail, 150mm

Geometry Data

XS S M L XL XXL
1 Seat Tube (C-T) 425 458 491 524 557 590
2 Top Tube (EFF) 526 539 558 570 590 603
3 Head Tube 110 131 152 178 199 220
4 Chainstay 430 430 430 430 430 430
5 BB Drop 78 78 78 76 76 76
6 BB Height 263/278 263/278 263/278 265/280 265/280 265/280
7 Wheelbase 1020 1030 1039 1054 1063 1072
8 Head Angle 70º 70.5º 71º 71º 71.5º 72º
9 Seat Angle 74º 74º 73.5º 73.5º 73º 73º
10 Rake
11 Standover 704/718 731/746 759/773 788/803 815/830 838/853
12 Reach 375 382 389 395 402 409
13 Stack 526 548 570 592 614 636
14 Fork Length 390 390 390 390 390 390
15 Trail 66/71 62/68 59/64 59/64 56/61 53/58
Geometry
